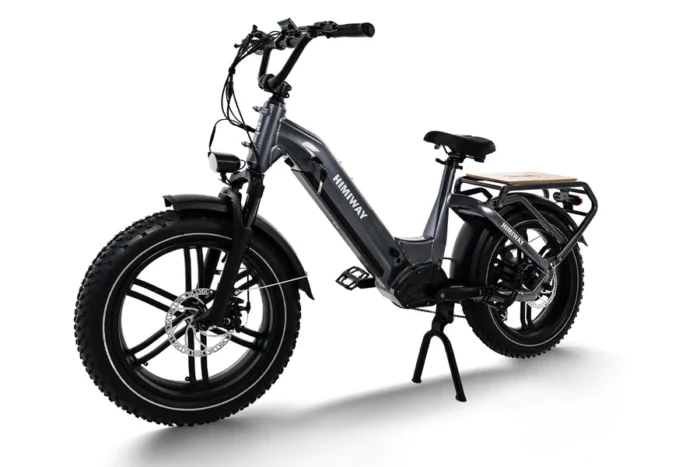

The Himiway Big Dog boasts a unique cargo frame design that ensures the durability of the rear rack and the stability of the cargo. The sturdy frame, which is twice the thickness of regular ebike frames, combined with the low-center-of-gravity moped design, provides the most comfortable riding experience even while carrying heavy loads
The Big Dog motor uses an updated 750W Brushless Geared Hub Motor and specialized inner ring, which enables high-temperature resistance and better heat dissipation. This inner ring reduces the motor magnetsā attenuation speed, which guarantees longer life expectancy for the motor.
The Big Dog combines the new 48V 20Ah Samsung/LG Lithium-ion Battery to ensure a long life expectancy and distinguished performance. The single range can be up to 80+ miles per charge on pedal-assist mode and around 60 miles on pure electric power mode.
| Frame | 6061 Aluminum frame |
|---|---|
| Headset | Neco A16M 44*44*30 |
| Fork | Alloy fork 135mm@28.6*25.4*270mm lockout & preload adjustable |
| Shock | Alloy front suspension fork with lockout and adjustment |
| Front wheel | Aluminum integrated wheel |
| Rear wheel | Aluminum integrated wheel |
| Tires | Kenda K1188 Krusade 20x4.0 |
| Battery | Samsung/LG 48V 20Ah |
| Motor | 750W brushless gear motor |
| Display | LCD display with USB charging |
| Throttle | Half twist throttle |
| Sensors | Cadence sensoräøØspeed sensoräøØbrake sensor |
| Crankset | Crank arm: IXF-212FA forged alloy 170mm | Chain ring: 46T |
| Freewheel | Shimano MF-TZ500-7 14-28T |
| Rear brake | Tektro ARIES MD-M300 mechanical disc brakes |
| Rotors | Tektro TR180-24 F:180mm R:180mm |
| Stem | MA-5040 28.6*31.8mm |
|---|---|
| Seatpost | JY-SP311 34*350mm |
| Handlebar | YC-B086 22.2*31.8*720mm |
| Seatpost | JY-SP311 34*350mm |
| Saddle | Selle royal A054UE |
| Lights | 48V LED light |
| Range | 60-80 miles |
| Controller | 48V/22A |
| Charger | US standard 3.0 A smart charger |
| Rider height | 5'1" ~ 6'5" |
| Weight | 88.6 lb. (with battery) |
| Max. payload capacity | 400 lb. |
| Second Battery: |
Yes ,No |
|---|---|
| Assembly |
Yes ,No |
